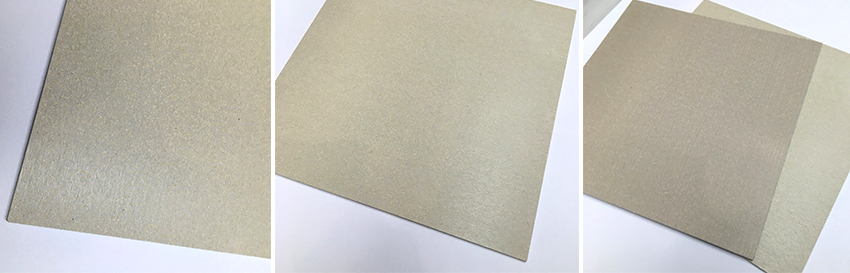

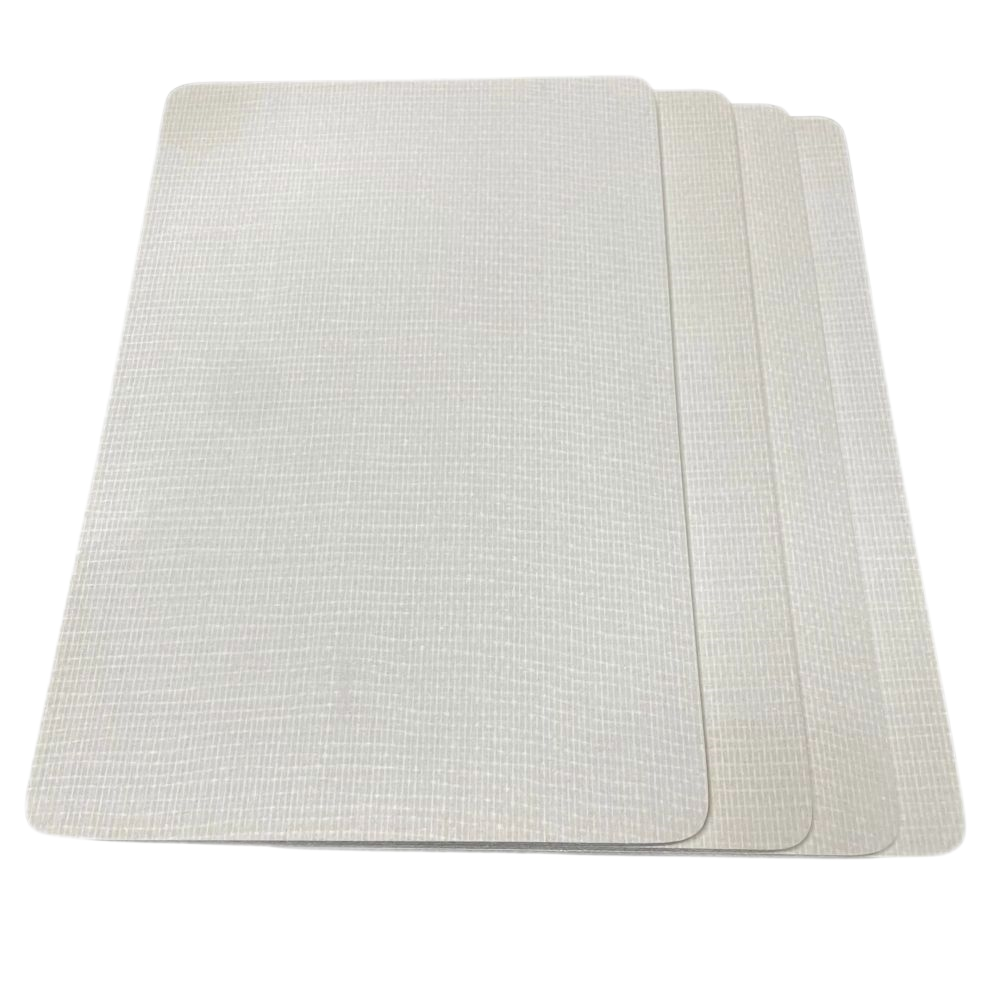

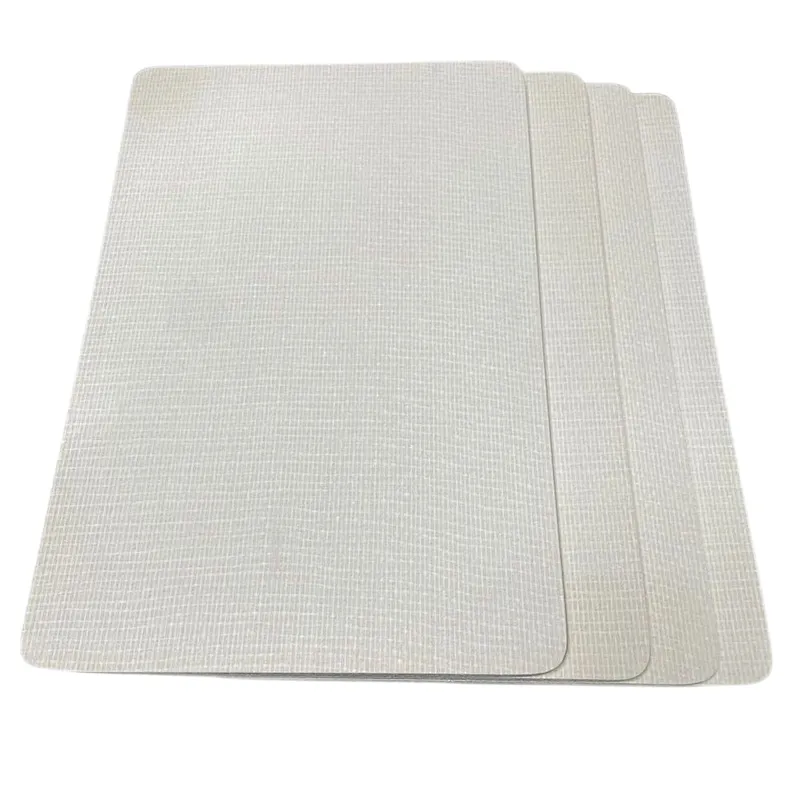

MGO flooring core board is a kind of high-density inorganic material made of magnesium oxide and magnesium sulfate as the main raw materials, adding perlite, bamboo powder and high-strength fiberglass cloth.
It has the characteristics of A1 class fire protection, good flatness, dimension stable and environmental protection, and specialized used as the core material of composite floor.
Features1. Fire and water resistance
Class A1 fireproof, non combustible, smoke free and non-toxic, and not expand and deform after absorbing water.
2. Durable
High surface bonding strength and internal bonding strength, dimension stable, high and no obvious warpage in high and low temperature
3. Green environmental protection
Zero formaldehyde, no heavy metal, recyclable and renewable, damp-proof and anti halogen.
Specification
Thickness | 5mm, 6mm |
Size | Can be customized |
Density | 1300-1400kg/m3 |
Performance
Items | Standard | Result |
Surface | Internal control | Without pore, pit, scratch, impurity, ect. Fiberglass meshes exposing: not allowed Holes: diameter should ≤2mm Color: same as sample. Obvious color difference: not allowed |
Size (length/width) | ASTM F2055 | ±1mm |
Thickness | ASTM F386 | ±0.1mm |
Edge straightness | ISO 24337 | ≤2mm |
Flatness | ISO 24337 | ≤2mm |
Density | ISO 23996 | 1350±50kg/m3 |
Moisture content | ASTM D4442 | ≤10% |
MOR | EN310 | ≥18MPa |
MOE | EN310 | ≥3500MPa |
Surface bonding strength | EN322 | ≥1.3MPa |
Internal bonding strength | EN319 | ≥1.3MPa |
Dimensional stability （70℃*6h） | ISO23999 | Length：≤0.3% Width：≤0.3% |
Curl（70℃*6h） | ISO23999 | ≤2mm |
